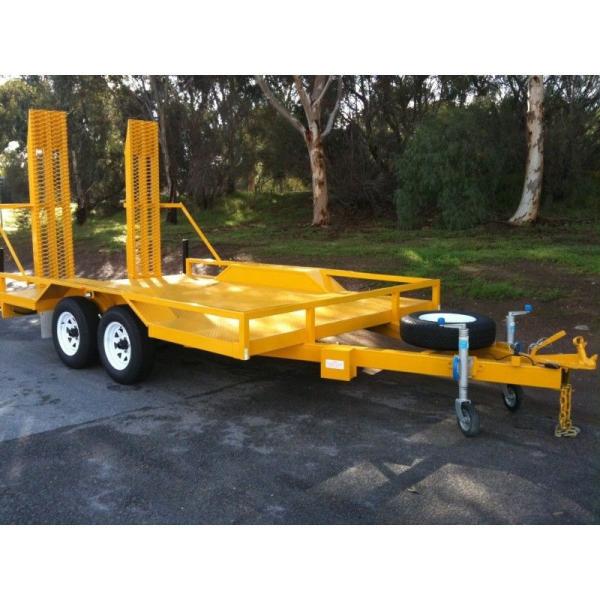

3200 KG 8x5 Tandem Plant Trailer , Heavy Duty Equipment Trailers For Transport

    Buy cheap 3200 KG 8x5 Tandem Plant Trailer , Heavy Duty Equipment Trailers For Transport from wholesalers

    Buy cheap 3200 KG 8x5 Tandem Plant Trailer , Heavy Duty Equipment Trailers For Transport from wholesalers
    • Buy cheap 3200 KG 8x5 Tandem Plant Trailer , Heavy Duty Equipment Trailers For Transport from wholesalers

    3200 KG 8x5 Tandem Plant Trailer , Heavy Duty Equipment Trailers For Transport

    Ask Lasest Price
    Brand Name : HONGLE
    Model Number : 8X5
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : FOB
    Supply Ability : Annual production capacity 5000 pcs
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    3200 KG 8x5 Tandem Plant Trailer , Heavy Duty Equipment Trailers For Transport

    3200 KG 8x5 tandem plant trailer , heavy duty equipment trailers


    Plant Trailers are great for carrying any Machinery. Modern Trailers can design a trailer to suit your needs. We construct all of our Plant trailers with rhs tube chassis which are extremely strong. Also, our plant trailers our made to Last. We will work with you to configure the layout of your trailer to suit your particular needs, style and budget All Modern trailer comply Australian standard.


    EXTRA FEATURES INCLUDED:

    • ROCKER ROLLER SPRINGS
    • FULL LENGTH SIDE RAILS & DEFLECTION RAILS
    • PAINTED IN MODERN STANDARD COLOURS
    • ELECTRIC BRAKES BOTH AXLES WITH BRAKE AWAY UNIT

    STANDARD FEATURES:

    • Checker Plate floor
    • Front Rail and Side Rails
    • C/Plate Mudguards set at 300 high
    • Ramps On Back Grid mesh With Helper Springs
    • Spare Wheel Holder on Draw Bar
    • Lockable plunger coupling
    • LED ADR approved lights and reflectors
    • New wheels (NOTE NOT SECOND HAND)

    SPECIFICATIONS:


    FLOOR2.1mm Rolled Checker Plate
    TAILGATESRamps to Suit your requirements
    MUDGARD2.1mm Checker Plate, 250mm Wide 4 Fold
    DEFLECTION RAILS50x25 on each side
    SIDE TIE RAILSFull Length Rails on Sides
    COUPLING50mm Electric 3500kg / Hand Brake
    SUSPENSIONRocker Roller Load Sharing Springs
    AXLES45mm Square Solid
    BRAKES/ELECTRIC10” Drum Both Axles with Brake Away Unit True Cable Hand Brake
    HUBS/FORD14” 5-Stud Hubs 10” Electric Drum
    BEARINGSB-type Inner large L68149 / B-type outer small LM12749
    RIMSNEW Sunraysia Type 14x5.5" CB 84mm PCD 114.3 (FORD)
    TYRES/8 PLY185R14C 8PLY Radial BRAND NEW WHEEL 850KG CAPACITY
    CHASSISALL75x50 RHS
    DRAW BAR125x75x3mm RHS V-type, with spare wheel holder
    SAFETY CHAIN2x13mm Rated chain 450mm Long
    LIGHTSLED Multi volt 12-24v, With Side Clearance Lights 7-Pin plug
    TRAILER DIMENSIONSTRAILER PRICES
    8x510x510x6Trailer8x510x510x6
    SIDE HEIGHT300300300TRAILER
    FLOOR HEIGHT540540540Spare
    OVERAL HEIGHT840840840J/wheel/JW8
    INSIDE LENGTH240030003000Rego 12 MTH
    INSIDE WIDTH152015201820Cage
    DRAWBAR/LENGTH165016501650Ramp
    OVERAL LENGTH410047004700H/frame
    OVERAL WIDTH203020302330
    LOAD RATING KG320032003200
    ATM KG690756815
    PAYLOAD KG251024442385Total
