    6X4 Galvanised Off Road Trailer With Heavy Duty Axle / 450mm High Side

    Ask Lasest Price
    Brand Name : HONGLE
    Model Number : 6X4
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : FOB
    Supply Ability : Annual production capacity 5000 pcs
    Delivery Time : 20 days
    • Product Details
    • Company Profile

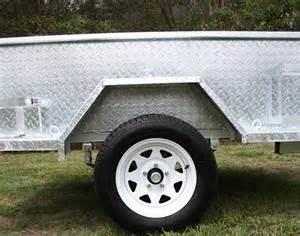

    6X4 Galvanised Off Road Trailer With Heavy Duty Axle / 450mm High Side

    6X4 Galvanised Off Road Trailer With Heavy Duty Axle / 450mm High Side


    STANDARD FEATURES

    • Rolled C/Plate floor and body 450mm High Side
    • Off Road Shackle Springs with Heavy Duty Axle
    • C/Plate pans in each corner/ C/Plate Mudguards
    • 2 jerry can holders fitted in front for both sides
    • Checker Plate front and rear drop down tailgates
    • Side Tie Rails and on both tailgates
    • Swing handles to secure gates
    • Spare Wheel Holder on Draw Bar
    • 50mm lockable plunger coupling
    • LED Lights ADR approved with Front & side reflectors
    • Light guard protectors on back Lights
    • Mudflaps to comply with Australian standards
    • New Rims & Tyres (NOTE NOT SECOND HAND)
    • V-type draw bar RHS square tube
    • Plug holder welded to the draw bar

    SPECIFICATIONS


    BODY/FLOOR450MM Sides 2 piece 2.1mm Rolled Checker Plate Tub
    TAILGATES2.1mm Folded Checker Plate, with tie rails
    MUDGARD2.1mm Checker Plate, 275mm Wide
    SIDE TIE RAILS27x2mm & Checker plate pans on each side
    COUPLING50mm Lockable Plunger
    SUSPENSIONSpring Shackle 60x7x7-Leaf 1450kg per Pair
    AXLESAxle 45mm Heavy Duty Square Slime Line
    HUBSL/C 6-Stud PCD 139.7 1/2" Studs SL B-Type Bearings 80'S
    BEARINGSSL B-Type: Inner Large LM681489, Outer Small LM12749
    RIMS/NEW16*6" 6 on 5.5" White Spoke Steel Rim CB 84mm PCD 139.7
    TYRES/NEWLT235/70R16 950kg
    CHASSIS/STRUTSAll 50x50 RHS
    DRAW BAR100x50x3 mm RHS V-type, with spare wheel holder
    SAFETY CHAIN8mm Rated chain 450mm Long
    LIGHTS /LEDMulti volt 12-24v,7-Pin plug/Side Clearance Lights 7x5 Only
